FDD 3000 Seed Drill - IRTEM - FDD3000

The drill features a 1080L seed tank and a 700L fertiliser capacity. Two gearboxes are used in order to make dosage for seed and fertiliser infinitely adjustable and independent of each other.

Stock/Ref #: FDD3000 Brand: Irtem

Can Transport Australia Wide!

Contact us today for sales or make enquiry below.

$32,450.00

Description

FDD 3000 Seed Drill – IRTEM – FDD3000

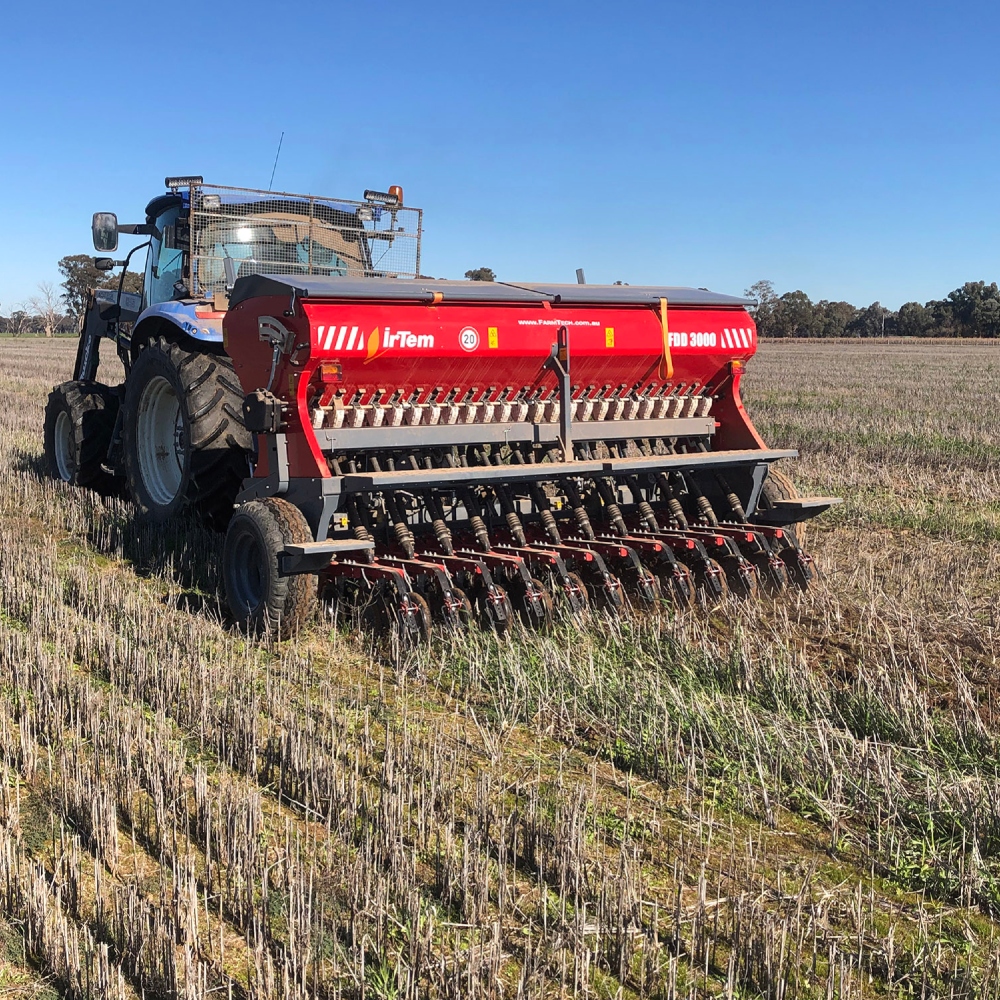

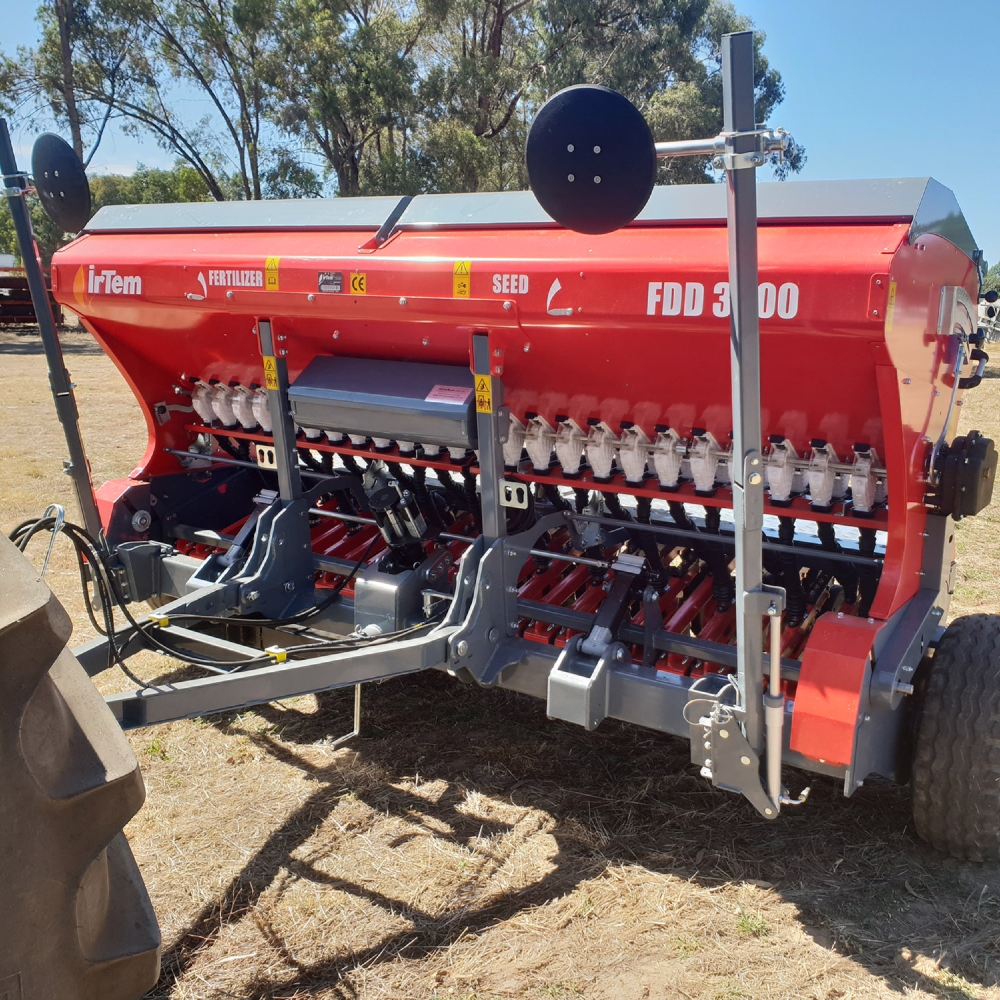

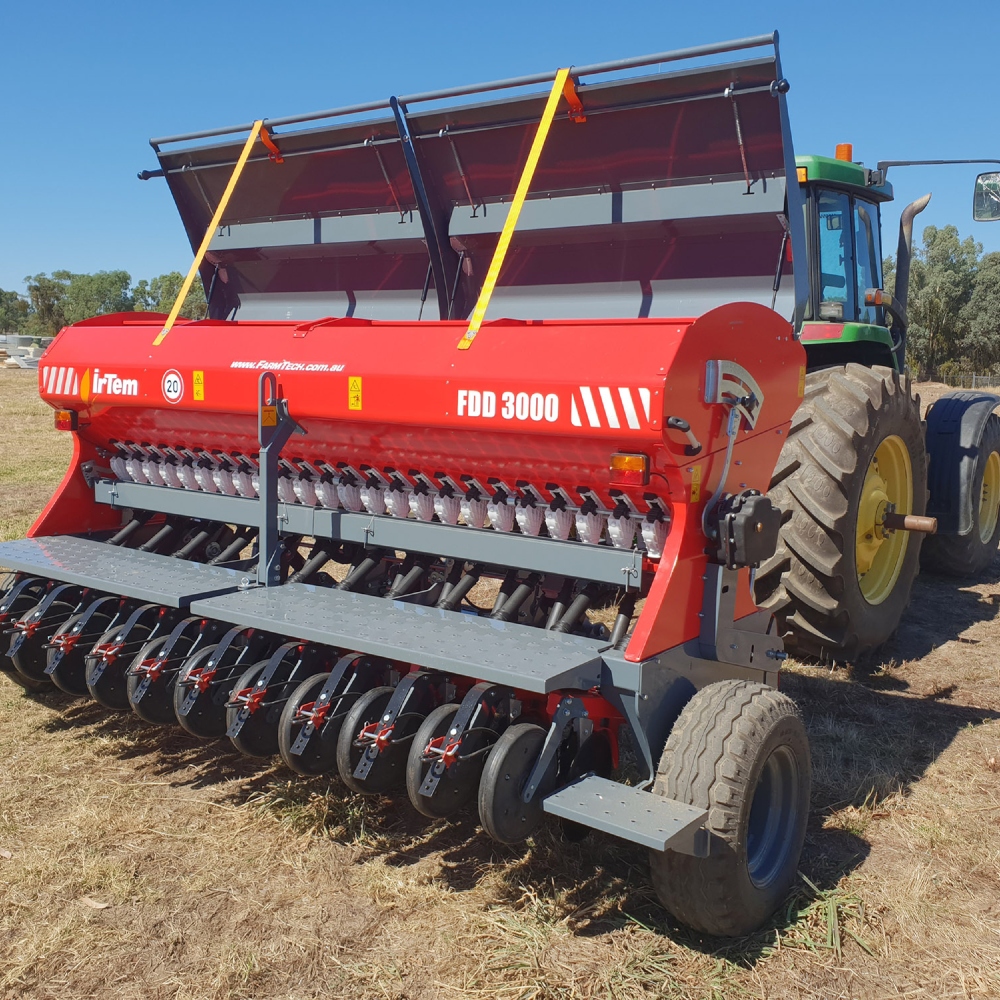

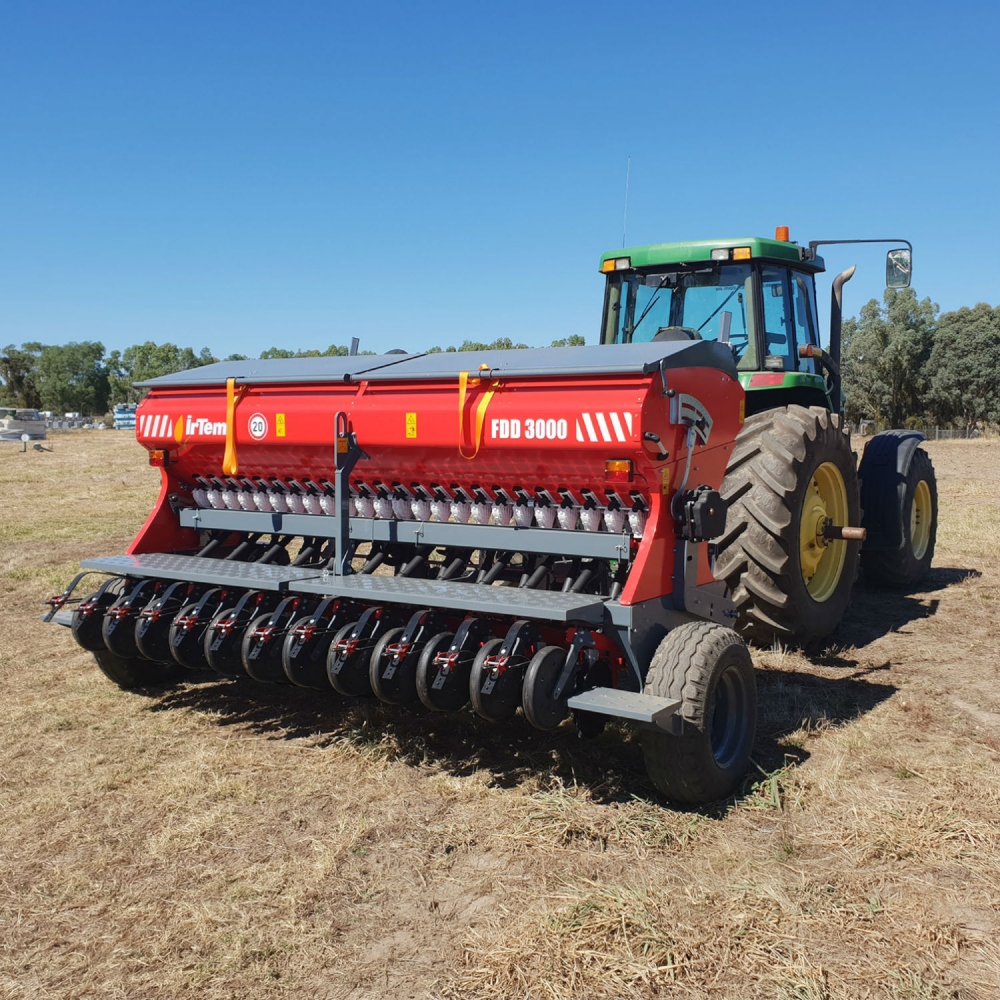

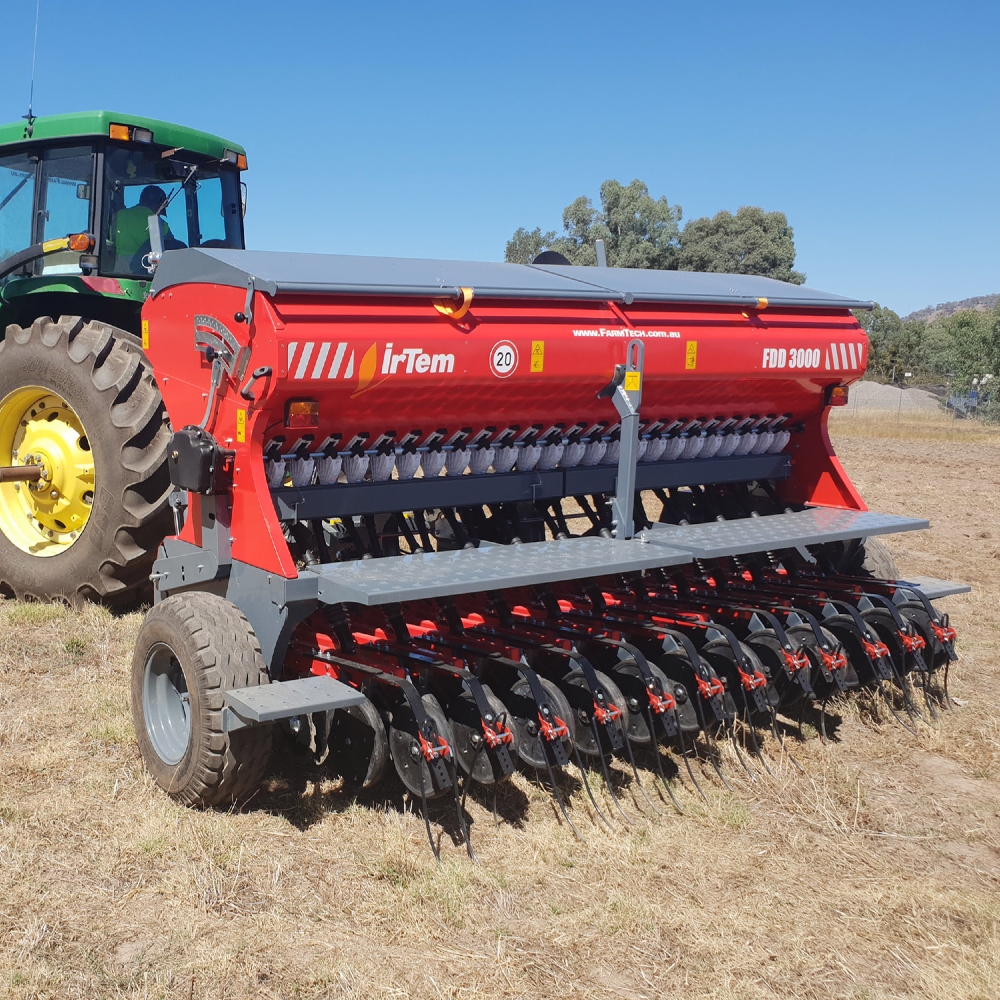

The Irtem FDD 3000 is a trailing 24 row, double disc seed drill with press wheel, covering harrows and fertiliser box. Various seed sizes are usable due to the adjustable seed wheels. The drill features a 1080L seed tank and a 700L fertiliser capacity. Two gearboxes are used in order to make dosage for seed and fertiliser infinitely adjustable and independent of each other.

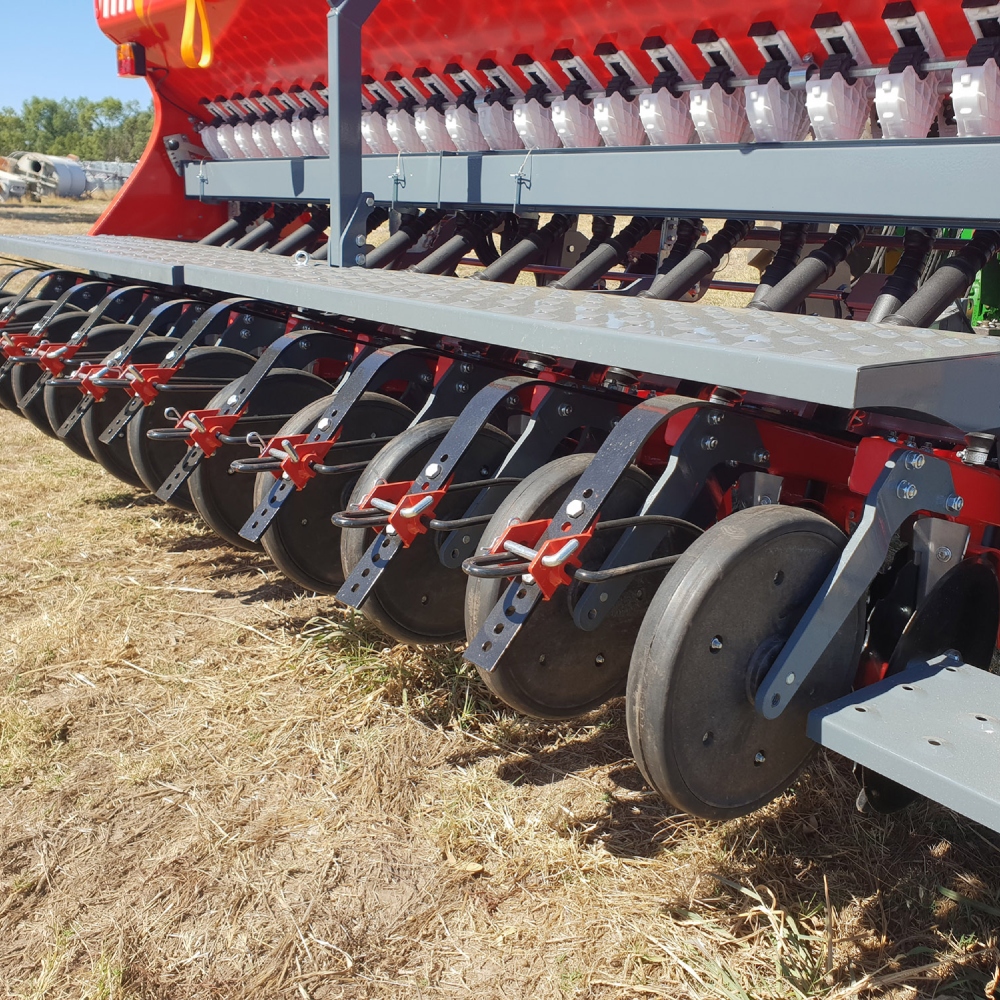

The FDD 3000 features over sized bearings on each disc. Each double disc row arm is mounted to a 4x triangular rubber mounted block, reducing moving parts and increasing the life of the components.

Features:
Rows: 24
Seed Spacing: 125mm
Working width: 3m
Total Transport Width: 385cm
Total Height: 200cm
Total Operating Length: 370 cm
Weight: 1980kg ( empty )

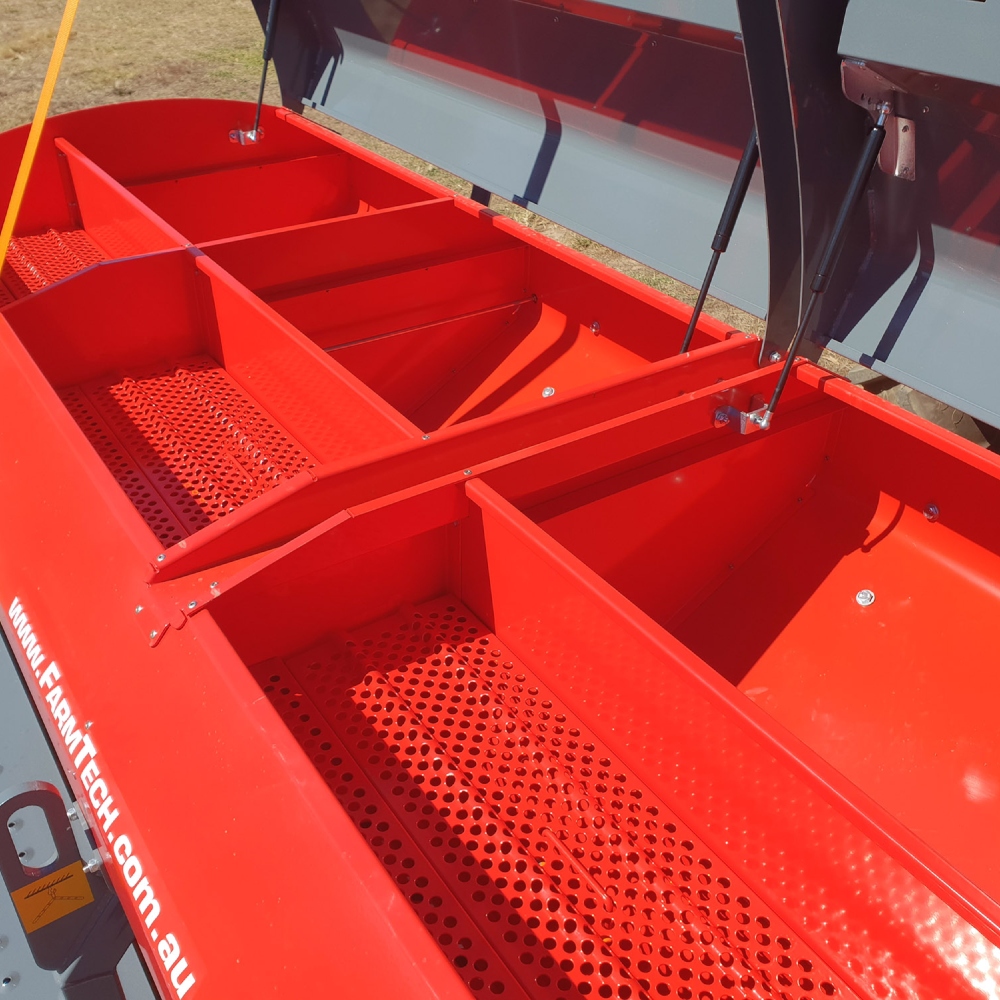

Seed Tank Capacity: 1080L
Fertiliser Tank Capacity: 700L
Required Tractor Power: 80HP

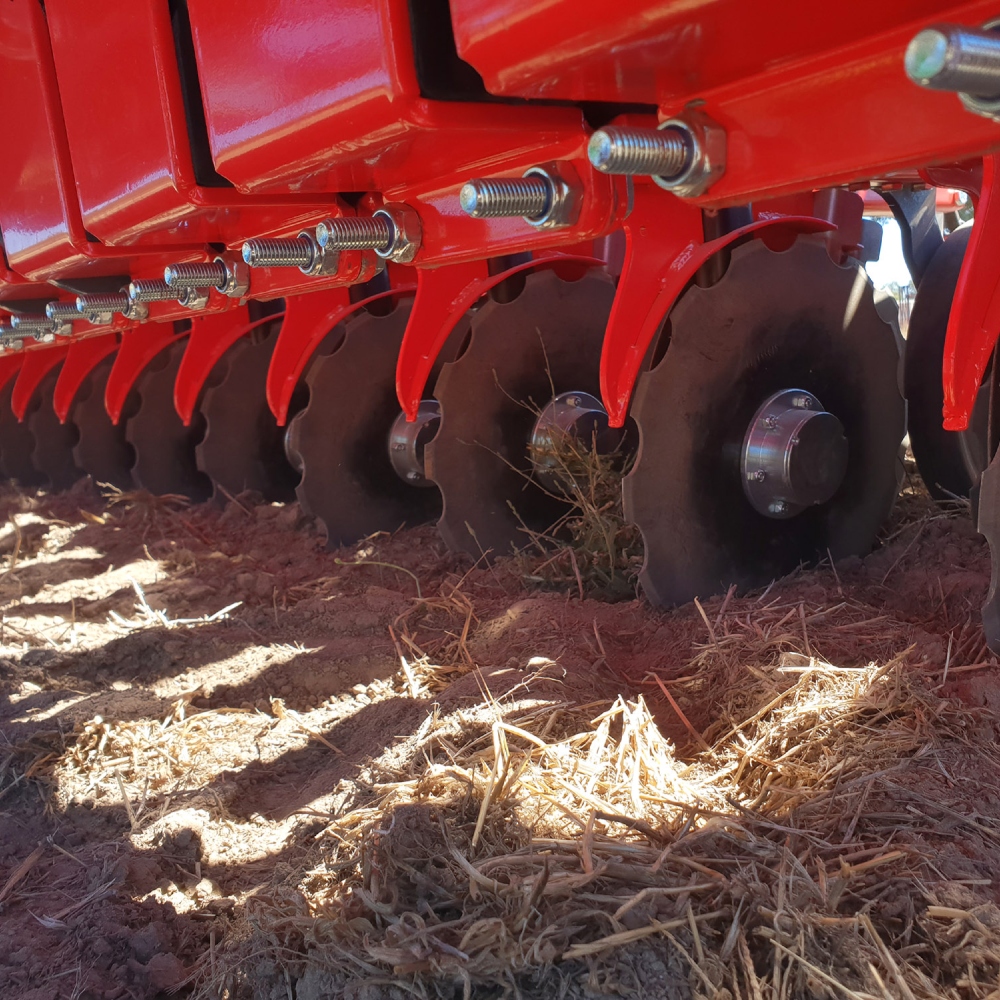

Discs Diameter: 320mm / 3mm ( Plain / Scallop )

Down pressure per Coulter Assy. 35 – 150 kg * refer to operator guide
Minimum seed sowing rate 2kg / Ha >
Road light kit
Rear Tow hitch fitted
Loading Platform
Tyre size 260 / 70 – 15.3

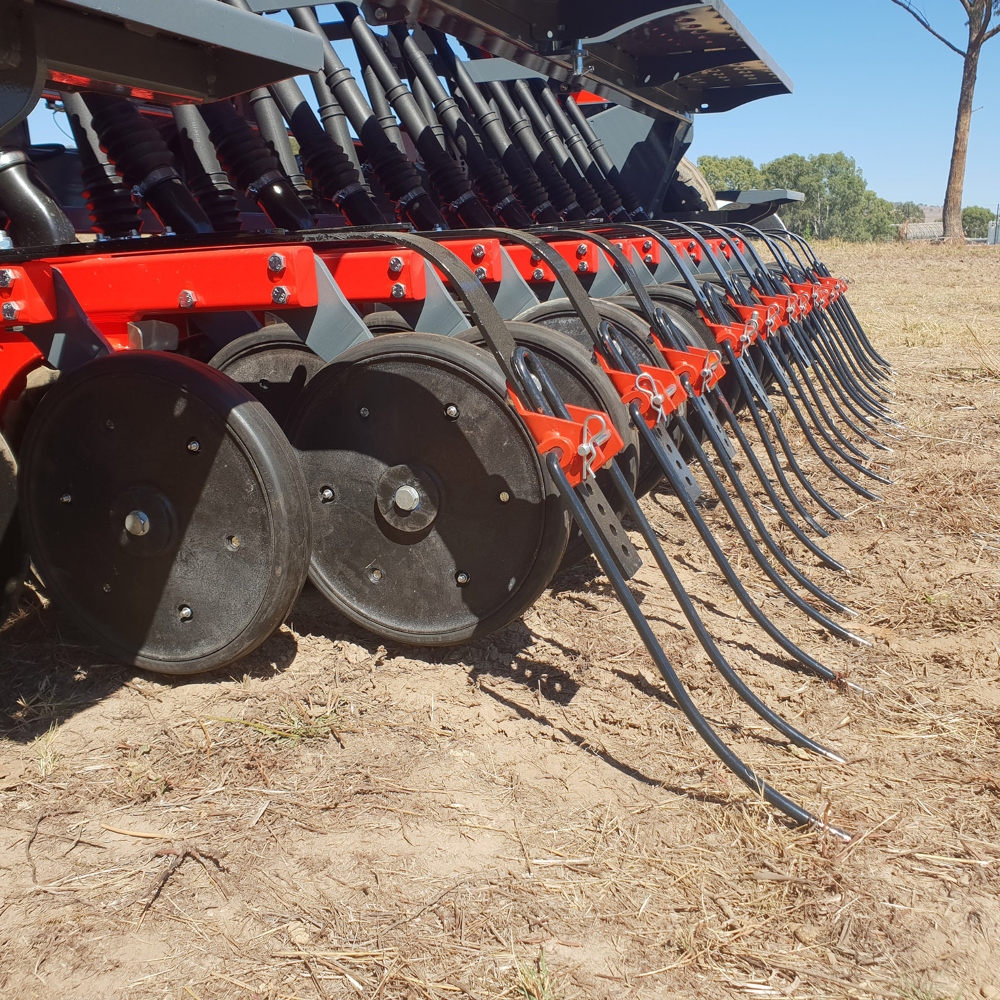

Adjustable seed covering Harrow tine

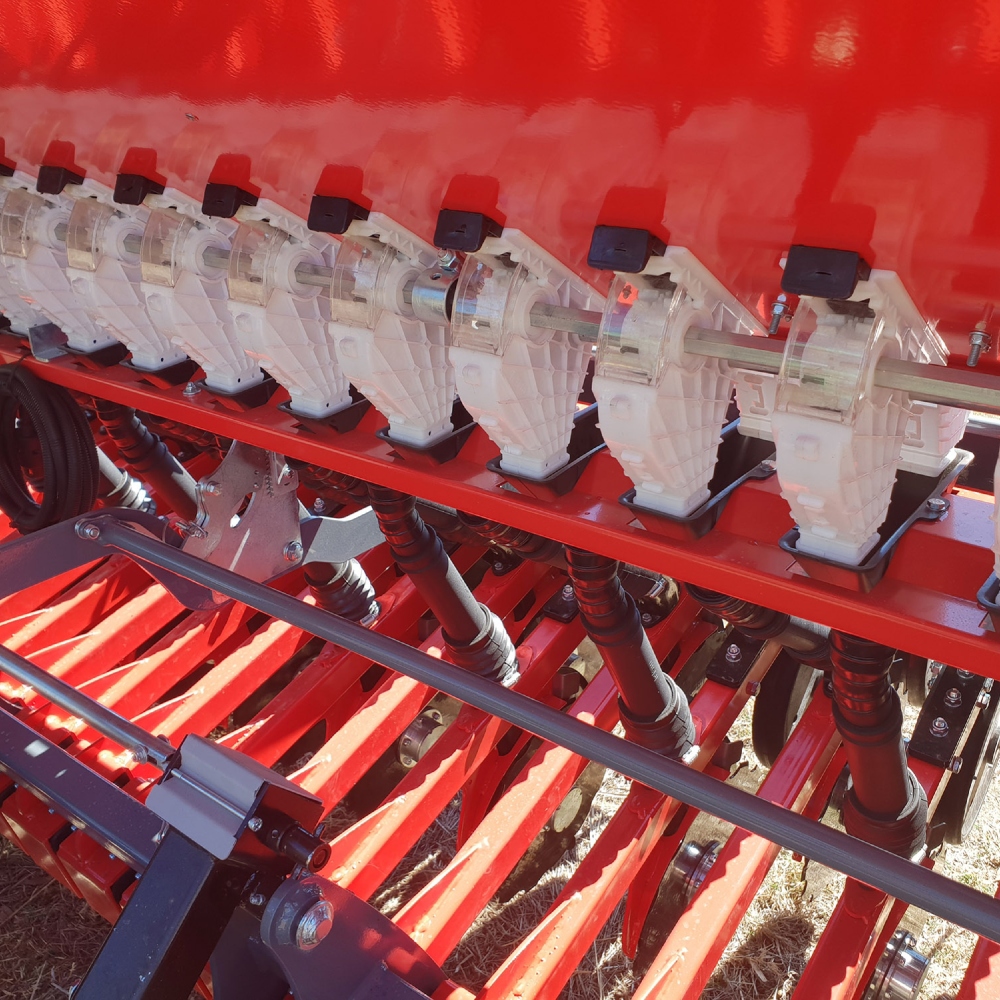

Adjustable seed metering wheels, small/medium/large seeds
Adjustable downpressure to Disc Assembly
Adjustable drawbar height Tow Eye
Ground drive engage/disengagement
Seed Calibration Tray
Variable adjustable rate gearbox’s – seed / fertiliser
(No Ha. Metering Unit fitted as standard.)

Optional
Farmscan Jackal Ha. Metering Controller
Hyd. Row Markers

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
