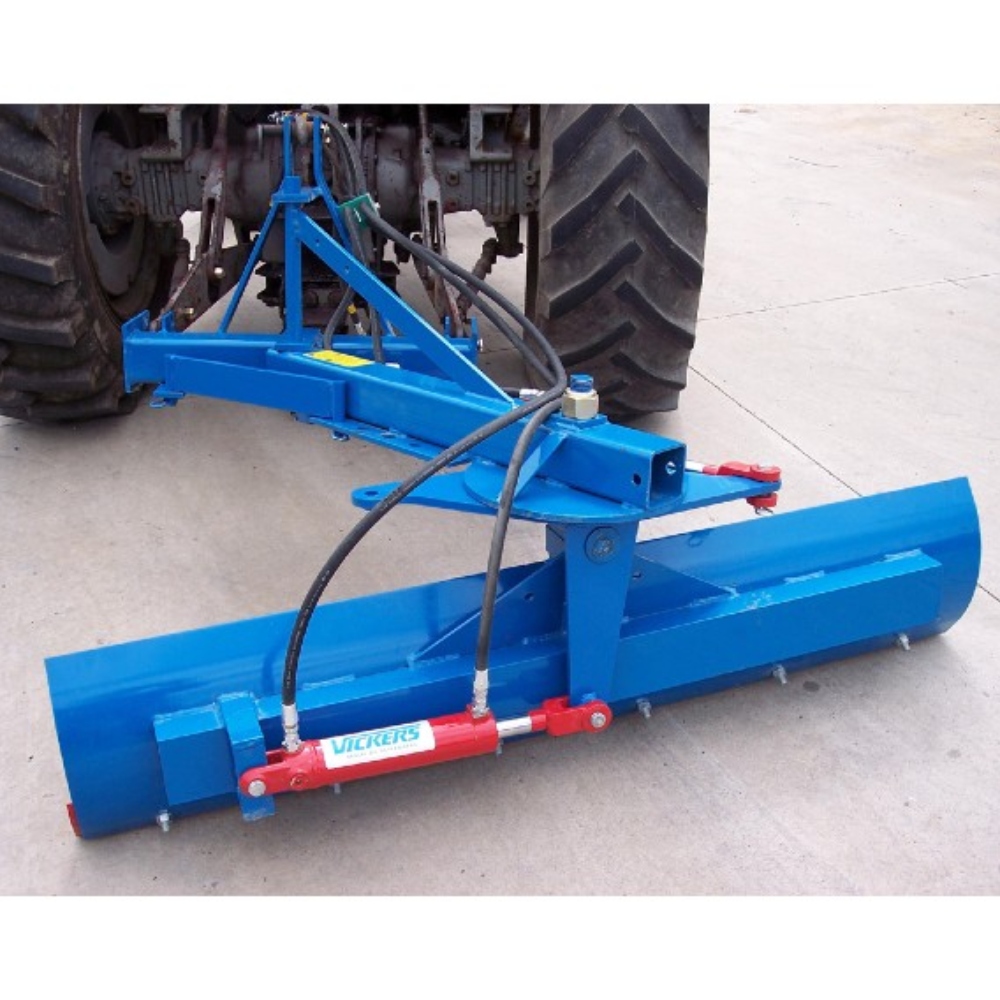

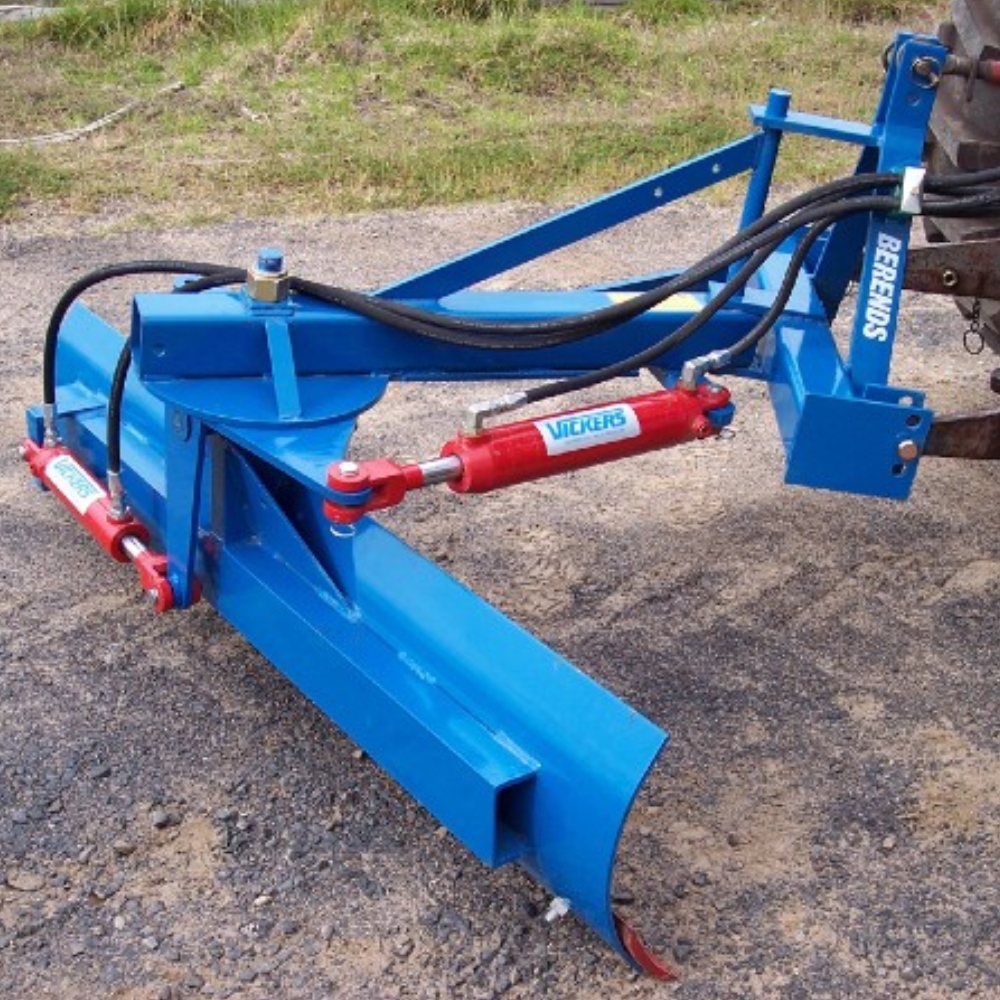

John Berends Medium Duty Grader Blades 6ft (1.8m) 1 Ram Hydraulic Angle – 0414

Description

John Berends Medium Duty Grader Blades 6ft (1.8m) 1 Ram Hydraulic Angle – 0414

An implement for the small to mid range tractors which is easy to use but with the strength and reliability to match Australian conditions.

Features:

• Hydraulic angle (3″x12″ ram) allows mouldboard to be angled at up to 45 deg in each direction from the tractor seat. Blade can also be reversed for back filling.
• Can be manually offset in seconds to work outside the tractor wheel to the left or right hand side. Maximum of 600mm offset.
• Tilt position can be controlled either via a ratchet or optional hydraulics (2 ram model). Allows approximately 30 deg tilt in both directions. Additional holes for the lower linkage arms provide extra tilt for extreme V-draining.
• Diverter kits are available to allow 2 ram model to be used on tractors with a single set of remotes.
• Heavy duty hardened reversible cutting edges for maximum life.
• Optional pneumatic wheelkit available for depth control.

Specifications:

• Cutting width: 6ft (1.8m)
• Mouldboard thickness: 8mm
• Mouldboard height: 450mm
• Tractor HP: 30-60
• No Offset Positions: 4
• Weight: 240kg

Also available:

• 0415 – 6ft MD HydraulicGrader Blade – 2 ram (hydraulic angle/tilt).

Options:

• 0411 – Grader Blade Wheel Kit.
• 0419 – Boxed ends suit Medium Duty model blades.
